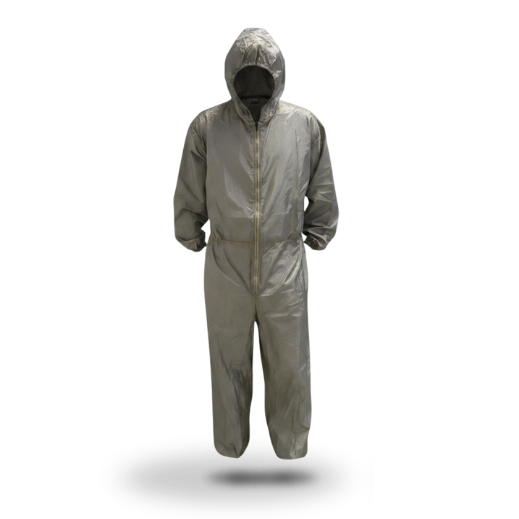

Shieldex® Multiprotection Suit
The Shieldex® Multiprotection Suit is a conductive shielding coverall for professional use in cleanrooms, laboratories and technical production environments. The fabric, metallized with 99.9% pure silver, provides reliable RF/EMI shielding of up to 60 dB in the frequency range from 0.2 to 14 GHz and combines high shielding performance with antistatic properties.
Application Areas
• Cleanroom applications
• Laboratory environments
• Research and development
• Technical production areas
• RF, EMI and EMC-related working environments
• Measurement, radio and laboratory technology
• Antistatic applications
Product Benefits
• RF/EMI shielding in the range of 0.2-14 GHz
• Shielding performance of up to 60 dB
• Electrical conductivity: < 0.3 Ω/□
• Antistatic material properties
• Suitable for cleanroom and laboratory applications
• Robust, conductive silver fabric
• Ergonomic cut for good freedom of movement
• Elasticated cuffs at the hood, waist, sleeves and legs
• Washable at 30 °C on a gentle cycle

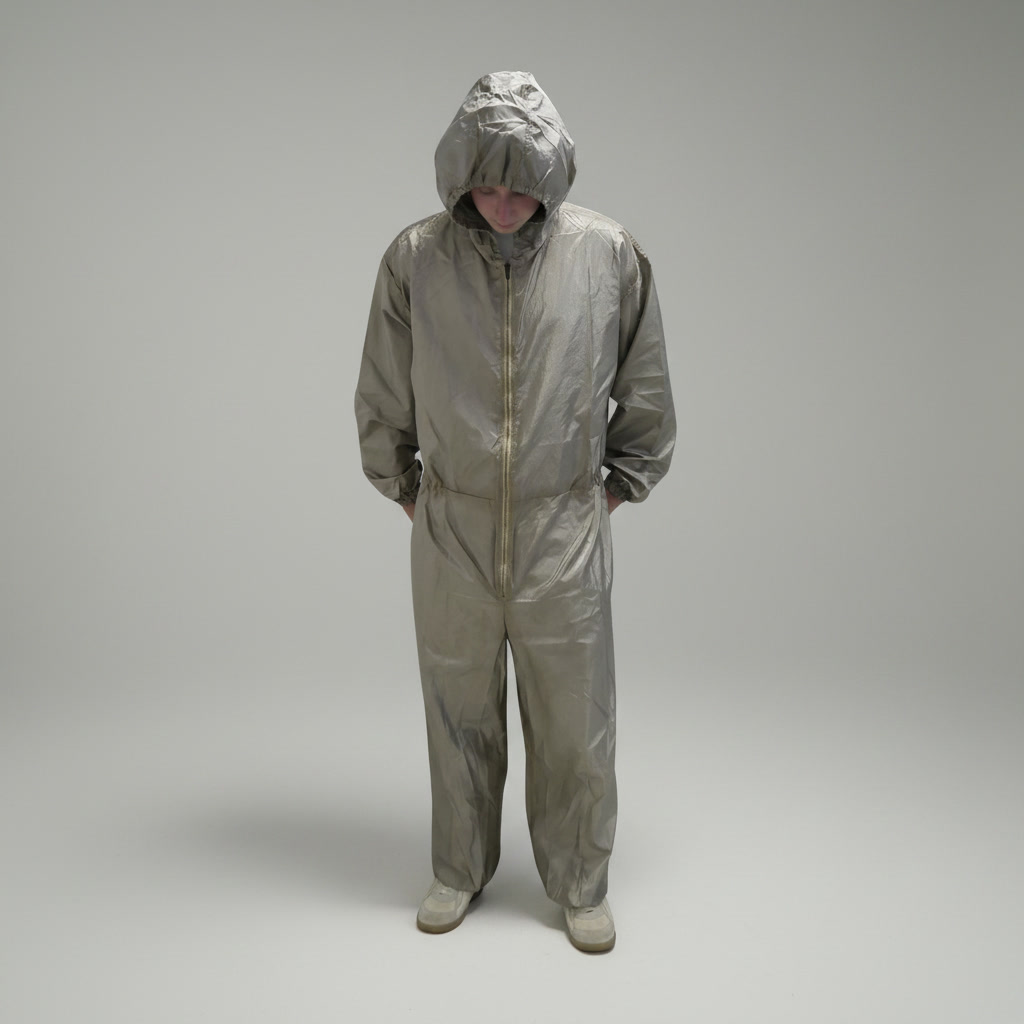

in relevant working environments
The Shieldex® Multiprotection Suit was developed for work areas where textile shielding, electrical conductivity and antistatic properties are relevant. The coverall is made from a robust, conductive silver fabric and is particularly suitable for cleanroom, laboratory, research and technical production environments. With shielding performance of up to 60 dB in the range from 0.2 to 14 GHz, the suit supports applications where electromagnetic influences need to be reduced and controlled process conditions need to be maintained. Thanks to its textile material and ergonomic cut, the coverall offers freedom of movement and comfort for professional use. Elasticated finishes on the hood, waist, sleeves and legs ensure a close-to-body fit.

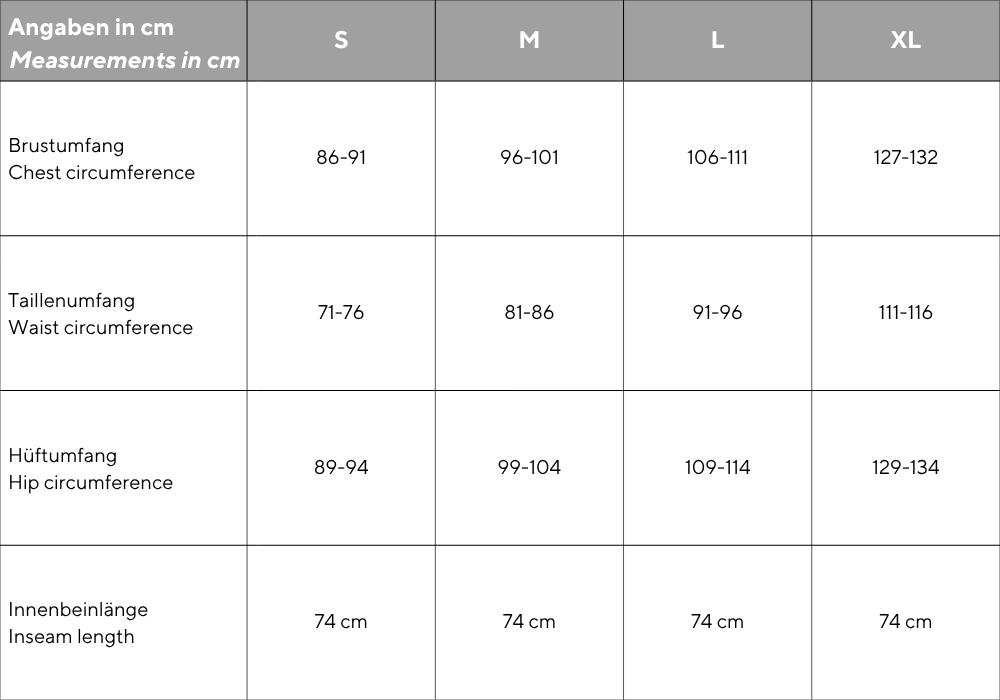

Size Chart & Care Instructions
• washable at 30 °C • wool wash or gentle cycle recommended • use a mild specialty detergent • not suitable for tumble drying • do not use aggressive detergents • gentle care is recommended to preserve conductivity and material function over the long term
Technical Data
| Product ID | 8004001 |
|---|---|
| Type | Solutions |
| Product type | Conductive RF/EMI shielding coverall |
| Colour | Silver |
| Material | conductive silver fabric / 99.9% silver |
| Frequency range | 0.2–14 GHz |
| Shielding performance | up to 60 dB |
| Electrical conductivity | < 0.3 Ω/□ |
| Application areas | Cleanroom, laboratory, research & development, technical production, RF/EMI environments |
| Testing | processed material tested according to IEEE 299/2006 |
